Model HIP

SKU: HIP

Pyrometer, Handheld, Sulfur Processing Service

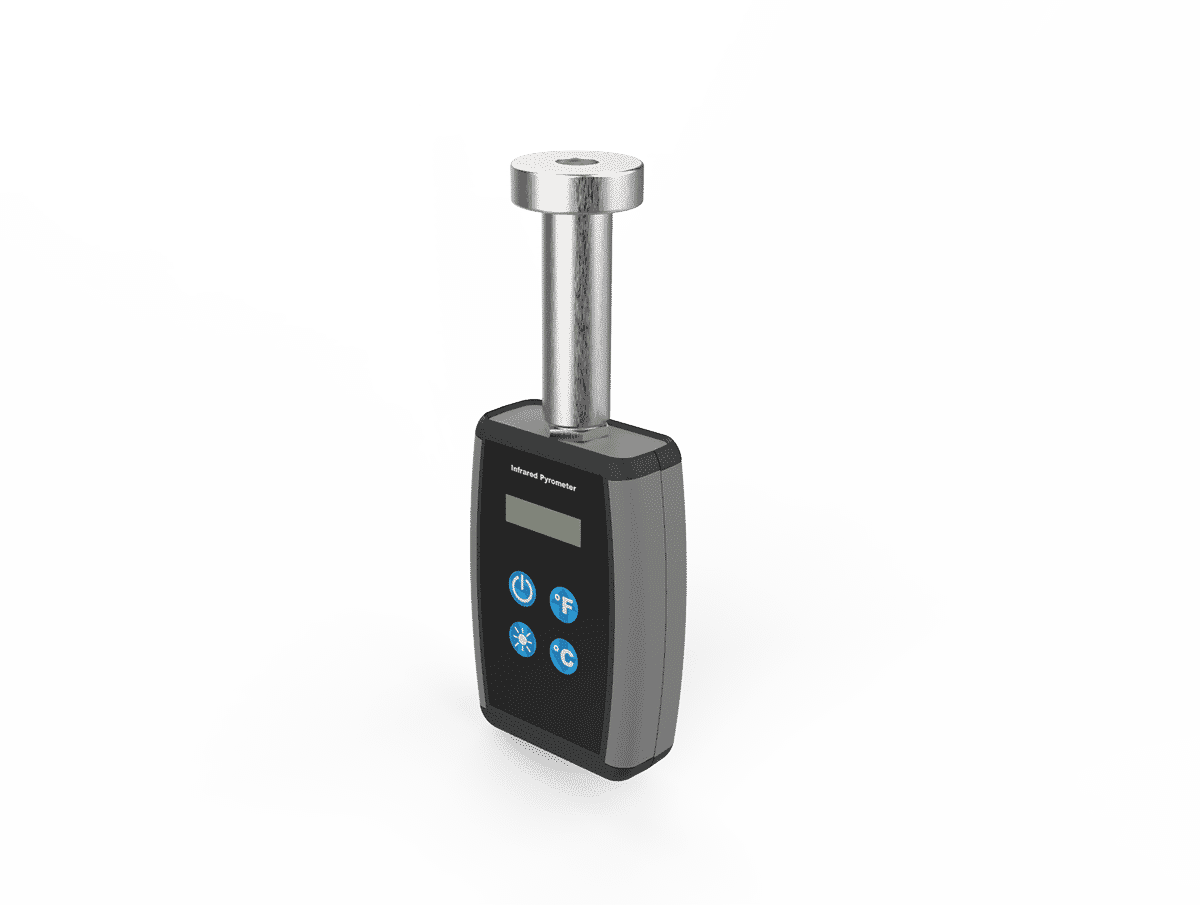

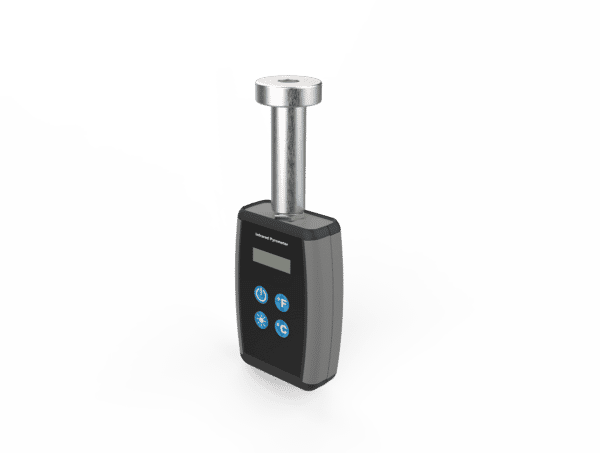

The Delta Controls Model HIP Handheld Pyrometer is a robust tool for troubleshooting temperature measurement issues and calibrating permanently installed pyrometers. Model HIP detects the intensity of infrared energy radiated by the refractory hot face in a Claus thermal reactor. This sensed energy is converted into an electrical signal, which accurately displays the temperature. The electronics employ a dual-wavelength ratiometric measurement that is unaffected by flames, partial nozzle obstructions, or coated lens windows to accurately measure refractory temperature.

Features

  • Handheld pyrometer for portable temperature verification
  • For use with Delta Controls pyrometer or other models
  • Highly reliable dual wavelength technology
  • Lightweight for easily travel; includes carrying case
  • Calibrate permanently installed pyrometer

Specifications

  • Measurement Range: +662 °F to +3092 °F (+350 °C to +1700 °C)
  • Readout: LCD display with backlight
  • Power Required: 3 AA batteries
  • Ambient Temperature Limits: -4 °F to +158 °F(-20 °C to +70 °C)

Required Ordering Information

  • Model number
  • Documentation & testing packages (if required, refer to Additional Resources in the product catalog)
