Heated Versus Purged Viewports
Comparison Photo of the “Hot Lens” vs. “Purged Window”
Standard Purged Window

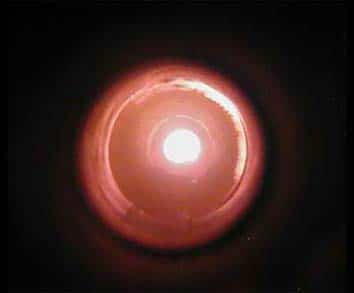

Looking through a cool viewing window into an operating Claus Thermal Reactor. Note that sulphur has precipitated onto the viewing window in spite of the air purge. The sulfur particles block infrared radiation.
Delta Heated Lens Window
View through the HIR Infrared transmitter viewing port into an operating Claus Thermal Reactor. Note that the infrared transmitter’s sight path has remained clear in the Delta Controls’ steam jacketed lens assembly. Maintaining the high temperature keeps the sulphur from precipitating onto the lens surface, causing reading errors, and requiring maintenance.
Increase of Cool Window Buildup Over Time
Photo of a cool window after 6 months of operation
Photo of the same window after 12 months of operation
