60 Series

SKU: 60 Series

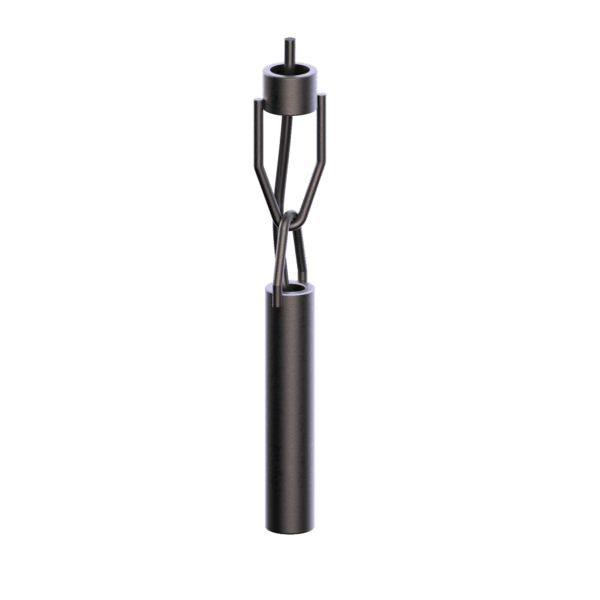

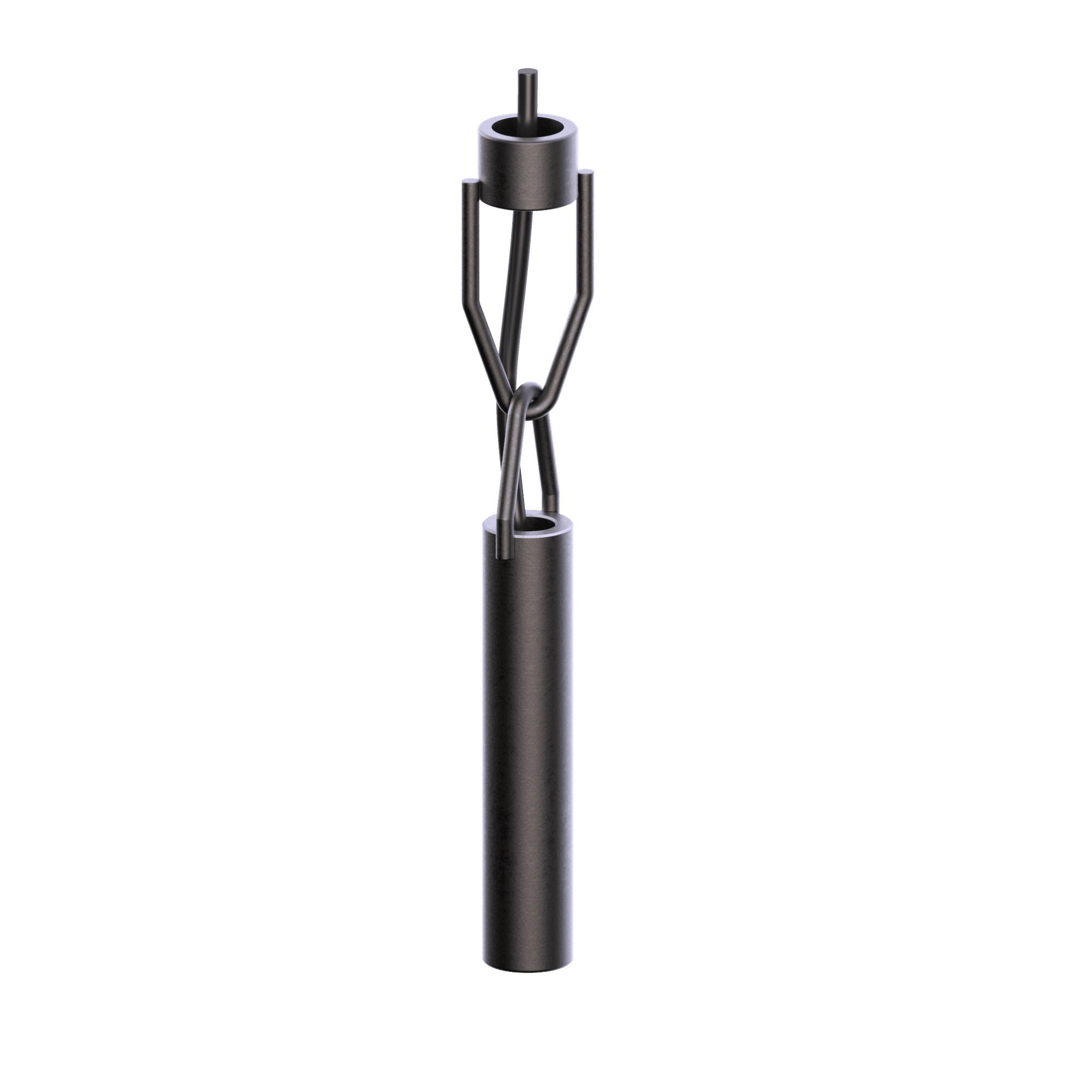

Tilt Probes, For Use With Model 835

The Delta Controls 60-Series Tilt Probes are designed for use with lump, granulated, or powdered solids. The Type 60 is a general purpose sensor most level detecting jobs. A Type 64 is usually required when the density is low or the material is an aerated powder. A Type 61 paddle end probe is a good choice for most moving material detection needs. The large sensing area provides high sensitivity and is less affected by voids. Stainless steel bail material is basic and suitable for most services. Use all-stainless probes when the area is wet or corrosive. Polished all-stainless is required for 3A sanitary services.

Slurries and liquids vary from extremely heavy and viscous to thin and watery. The Type 65 works well on heavy slurries. The Type 64 and 66 are normally needed when the material is a clean liquid or is a liquid with entrained solids. Types 65 and 66 are cable suspended and do not have bails. They can be cable suspended if the surface is calm and still. The Type HB Hanger Kit and Support Pipe should be added if ripples, roiling, or surface choppiness are present.

Features

  • Easy to install
  • Rugged and reliable
  • Long life probe cable
  • Probes available for solids, liquids, powders, and slurries
  • Optional user in conveyer applications

Specifications

  • Tilt Sensor: Liquid drop inside a welded steel chamber Second safety sea 1 A rating
  • Tilt Angle Sensed: 15° away from vertical in any direction, no additional action occurs during a global tilting of the probe
  • Temperature Limits: -40 °F to +220 °F (-40 °C to +104 °C)
  • Wetted Materials: Stainless Steel, nylon, PVC, PVDF (Kynar®), and exotic metals
  • Probe Cable:Oil resistant rubber insulation and jacket, flexible 41 x 34 stranded copper, 18 gauge

Certifications & Approvals

  • Explosion-proof Housing Option: Third Party Listed by CSA NRTL/C (USA and Canada) Class I, Groups B, C and D; Class II, Groups E, F and G; Class III; Encl 4X:

Required Ordering Information

  • Detailed model number
  • Tag or nameplate detail (if required)
  • Documentation/testing tiers (if required, refer to Additional Resources in the product catalog)
  • Process fluid or material name
  • Process fluid or material dieletric constant
  • Maximum process temperature
  • Maximum process pressure
