Model 592

592-cable-downhole-pressure-transmitter

SKU: 592

Pressure Transmitter, Cable Suspended, Remote Electronics

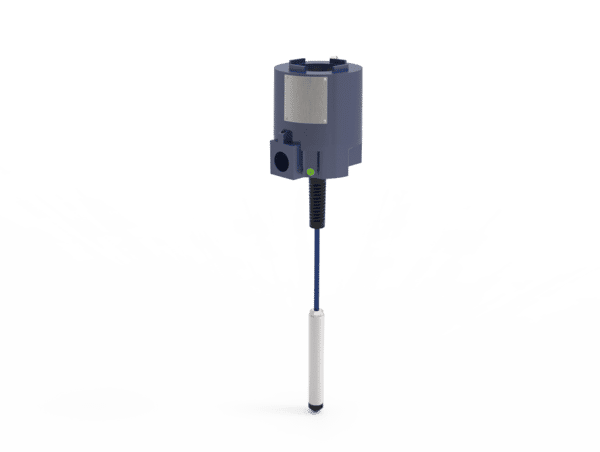

The Delta Controls Model 592 electronics unit is separated from the sensor and mounted above ground for ease of testing, recalibration, and inspection. The sensor is mounted in a heavy 316 S.S. body. A rugged electrical cable interconnects them and supports the body. Both are potted for maximum reliability. The sensor measures the pressure of the liquid above it. This pressure is linearly proportional to the height and density of the liquid above it. The Model 592 converts this pressure into a 4-20 mADC level signal. The sensor is connected through a vent tube to atmospheric pressure for a reference.

Unlike capacitance and admittance type devices, the Model 592 is unaffected by algae and sludge coating. Also, itÂ’s calibration can be checked or changed without the unit being installed in a well or pit.

The Delta Controls Model 592 is also very useful for measuring levels in tanks. The flexible cable is easy to install, even when head room above a tank is minimal. The small body diameter allows it to be installed through a 3/4″ MPT hole. Use the TPC corrector to compensate for gas space pressure option when the tank is pressurized.

Features

  • 4-20 mADC signal, 2 wire loop
  • Small size is easy to install. Enters A 3/4" NPT (23 mm) hole, slides easily down a 1" (27 mm) guide pipe
  • Ranges rrom 1 to 2500 feet (0.5 to 780 M) of water
  • Support Cable to 4000 feet (1250 m) long
  • Unaffected by algae and wet buildup
  • Spark & voltage surge protection
  • Sensor is at the bottom of well bore or tank
  • Electronics in a remote housing
  • Zero and span pots for recalibration
  • Units are field serviceable
  • Cable support clamp provided
  • Sludge nose optional for dirty liquids
  • Second vent tube can check for downhole sealing
  • Maintenance free operation

Specifications

  • Technology: Silicon strain gage
  • Supply Power: 13 to 35 VDC 2 wire loop powered
  • Output Signal: 4-20 mADC, isolated, intrinsically safe
  • Loop Impedance: 550 ohms at 24 VDC,1100 ohms at 35 VDC
  • Adjustments: Span from 30% to 100% of range, zero to 30% is basic, non-interactive.
  • Over Pressure: 2X Range, 35 PSI (2.5 Bar) minimum without damage; 3X Range, 1000 PSI (70 Bar) minimum without rupture
  • Vent Tube: Protected from moisture condensation through a desiccant filter or isolation bladder
  • Temperature Range:
    • -20 to +220°F Operating
    • -40 to +275°F Intermittent
    • 30 to +130°F Compensated (Higher Available)
  • Accuracy: ± 0.25% F.S. or better
  • Thermal Error: ± 0.02% F.S. / °F maximum
  • Barometric Effect: None
  • Weight:
    • Transmitter, less than 1 pound (0.5 KG)
    • Cable, 1 pound per 25 feet (0.5 KG/8M)

Applications

Water wells, test wells, fuel oils, treatment chemical storage tanks, landfill leachate wells, reservoirs, storm water retention basins.

Optional Features

  • Indicator: Large integral direct reading LCD
  • DC Power Supply: Integral VAC to 24 VDC
  • Alarm and Pump Control Module(s): Integral 5 amp, SPDT
  • Liquid Temperature: Is sensed and transmitted as a 4-20 mADC signal over a second 2 wire loop.
